Healmeds Medical Power Tool Instrument Orthopedic Multi-functional Bone Drill Veterinary Electric Cannulated Oscillating Saw

Product Description

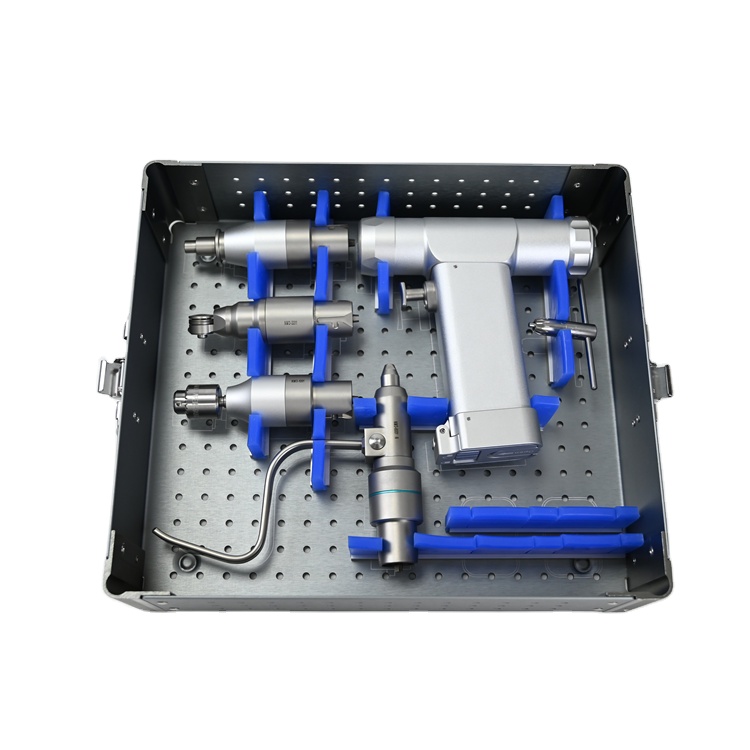

B100 Multifunction Drill and Saw Set
For Small Bone Fragment

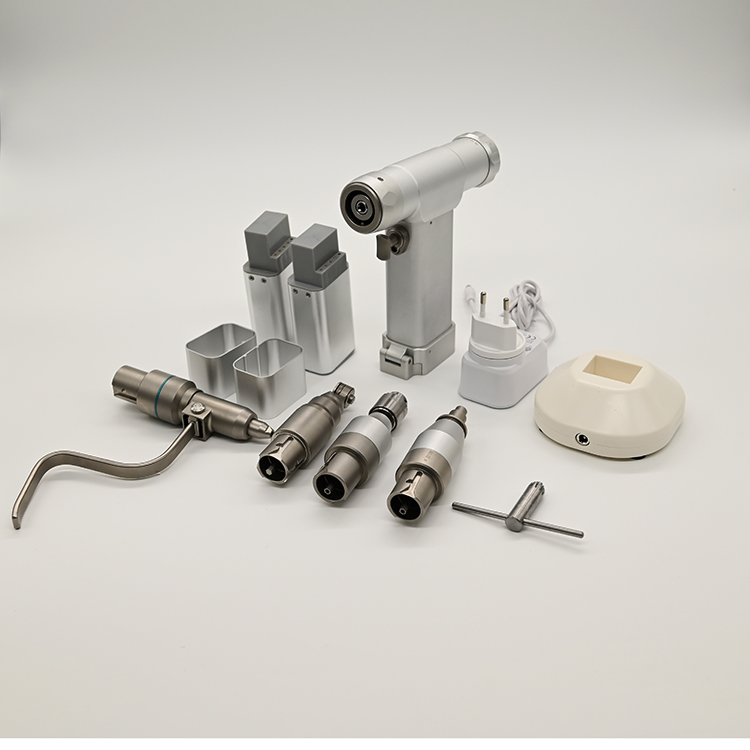

B100 Multifunction Drill and Saw
Key Features
  • Works with AO chuck, Jacobs key chuck, Mini oscillating saw and K-wire driving attachments.
  • Specifically designed for small bone surgery, including foot, hand, and veterinary orthopedic procedures.
  • Equipped with an imported cannulated motor, featuring a compact and lightweight design.
  • Standard 2-year warranty included.
  • OEM customization options are available.
Product Details

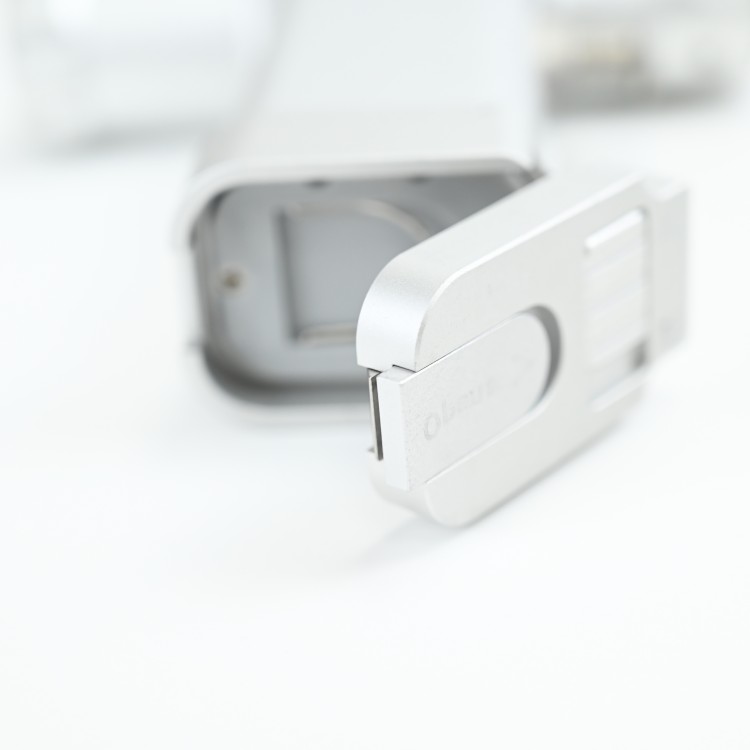

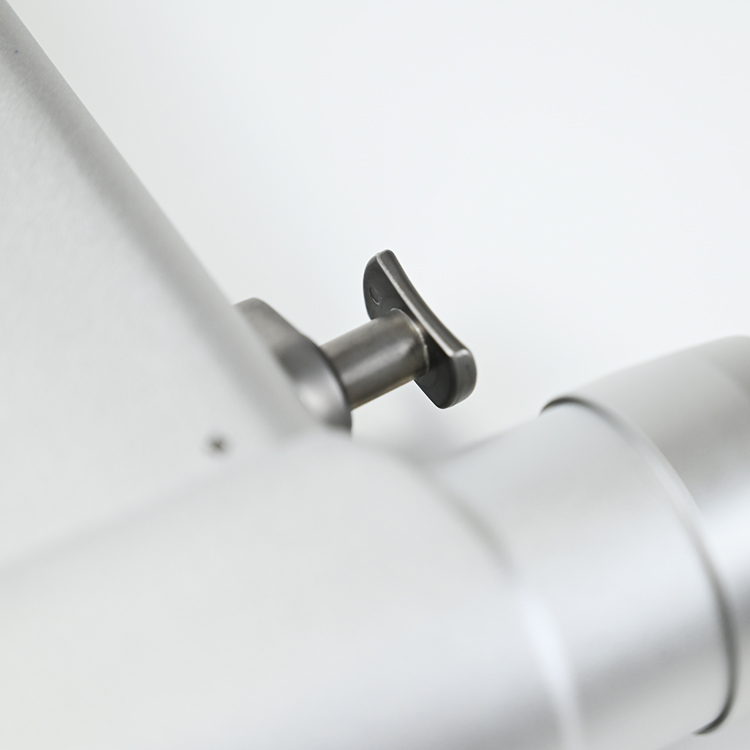

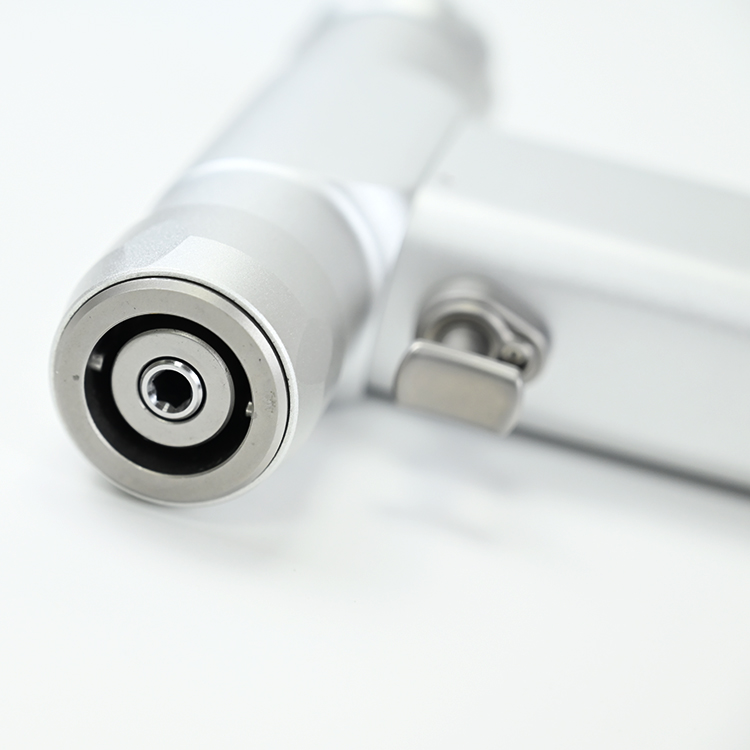

Attachment Detail 1 Attachment Detail 2 Attachment Detail 3

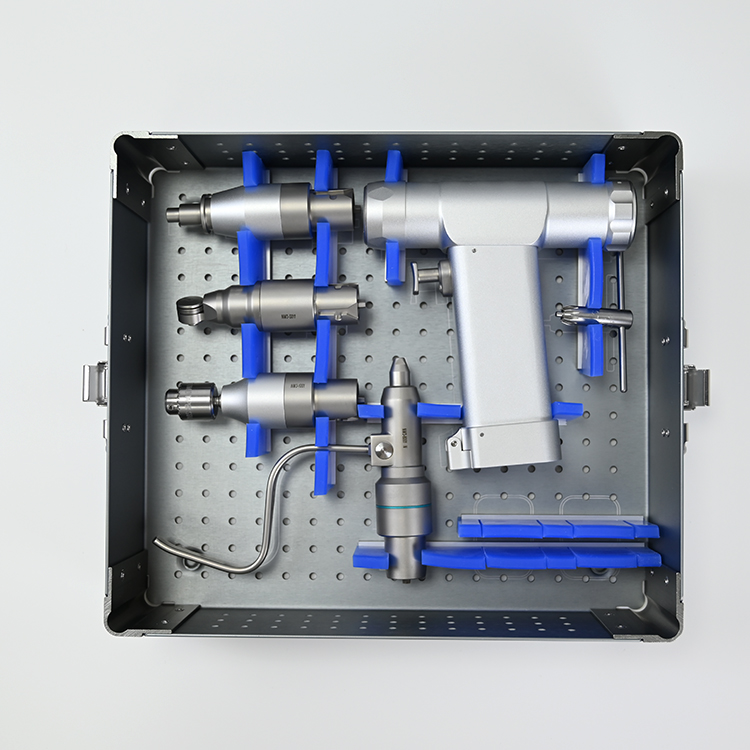

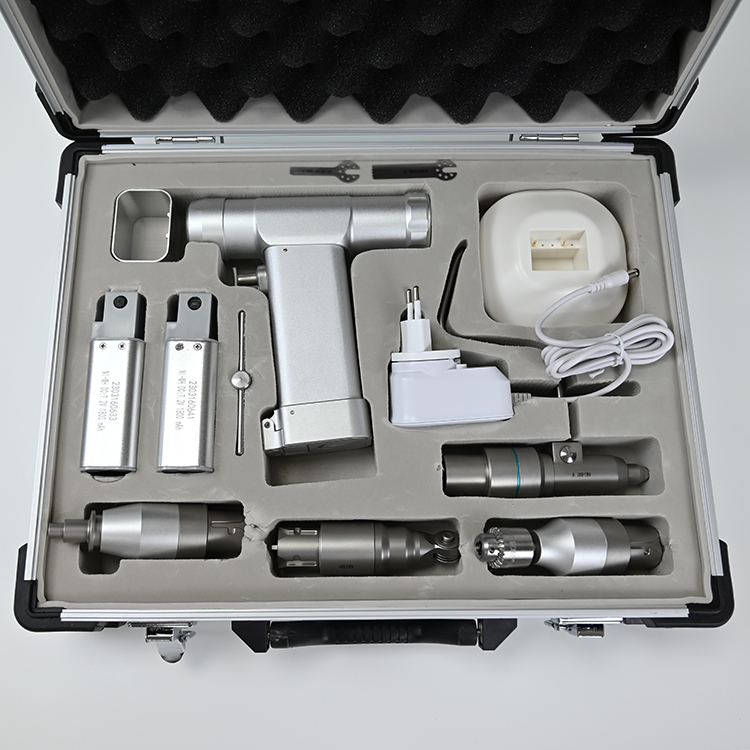

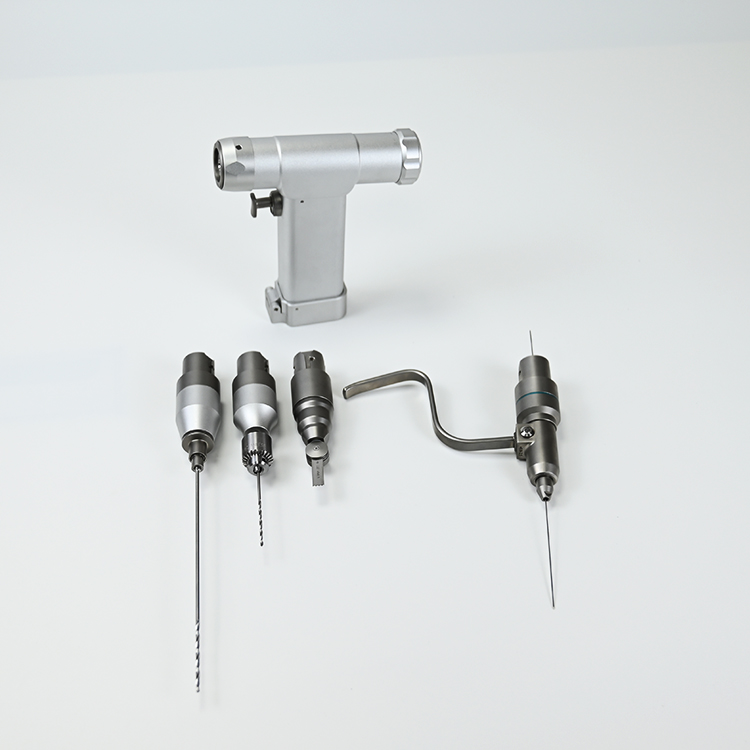

Set View 1 Set View 2 Set View 3

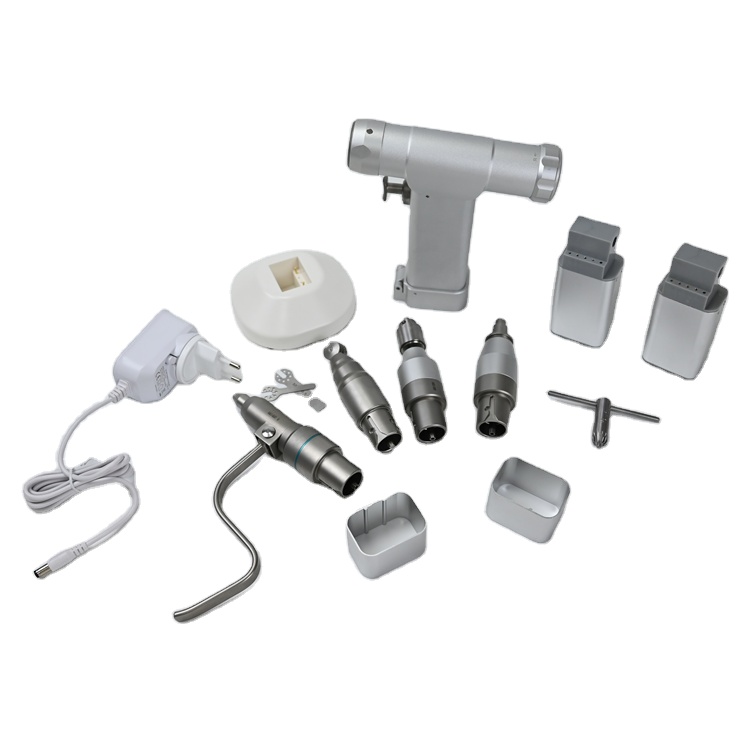

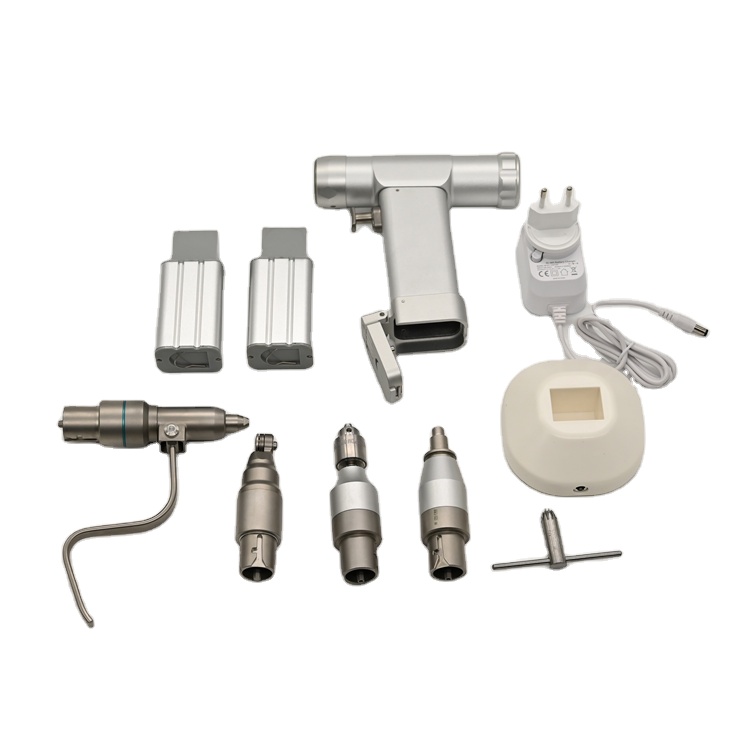

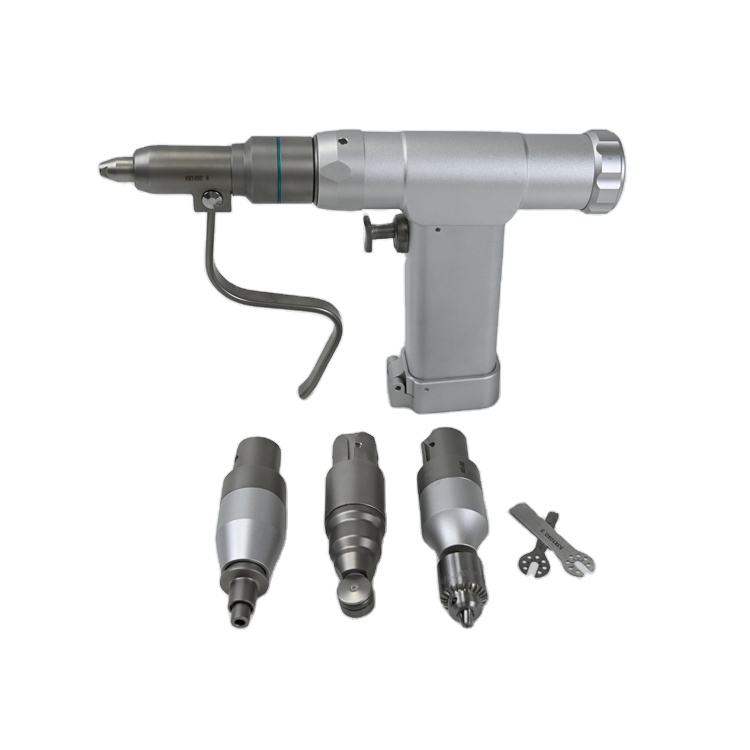

Standard Configurations
  • 1 Multifunction handpiece: 1 pc
  • 2 Jacobs key chuck with key: 1 pc
  • 3 AO chuck attachment: 1 pc
  • 4 Mini oscillating saw attachment: 1 pc
  • 5 Mini oscillating saw blades: 2 pcs
  • 6 K-wire driving attachment: 1 pc
  • 7 NiMH battery: 2 pcs
  • 8 Charger: 1 pc
  • 9 Sterilize channel: 1 pc
  • 10 Carry box: 1 pc
Technical Specifications
No-load speed 0-1200r/min Oscillations(osc/min) 0-16000 cpm
Chuck gripper diameter ≤4mm Sterilization temperature 155℃
Radial runout ≤0.10mm Battery capacity 1400mAh
Peak torque 2.9N-m Battery Type Ni-MH Green
No-load noise ≤45dB(A) Battery Operation(V) voltage 7.2V
Noise Functioning ≤75dB Hollow diameter 2.5mm
Payment & Delivery
Payment and Delivery options
Our Advantages
Advantage 1 Advantage 2 Advantage 3 Advantage 4
FAQ Details
Frequently Asked Questions (FAQ)

What types of surgical procedures is the B100 set designed for?

The B100 set is optimized for small bone surgical applications, including hand and foot orthopedic procedures, as well as veterinary orthopedic surgeries.

What attachments are compatible with this multifunction system?

This system supports a variety of modular attachments, including AO chuck, Jacobs key chuck, Mini oscillating saw, and K-wire driving components.

What is the sterilization limit for the B100 handpiece?

The handpiece and eligible metal components are fully autoclavable and can safely withstand standard medical sterilization temperatures up to 155℃.

What type of battery does the system use?

It features an environmentally-friendly 7.2V Ni-MH Green battery with a capacity of 1400mAh, ensuring stable power delivery during surgical operations.

What is the warranty coverage for the B100 Drill and Saw Set?

The system is backed by a standard 2-year warranty, which covers mechanical and performance defects under normal use conditions.

Are custom branding or OEM manufacturing options available?

Yes, OEM manufacturing options are fully supported to meet custom packaging, branding, and configuration requirements.
