Linvetac / Hall / Conmed Battery System Medical Orthopedic Drill Set Multifunction Drill and Saw

Product Description

E100 Multifunction Drill
Mini Multi-Function Bone Drill Machine

Based on the Conmed, our E100 Bone Saw includes a wide range of heavy-duty drills and saws. The battery and performance are the same as the Conmed, with dual-speed control for multiple cutting options. The reciprocating saw is compact and has excellent ergonomics. It cuts faster and harder. The rotating handle allows for high-speed drilling and high-torque reaming. It utilizes innovative motor technology to provide less vibration and better handle control. There are single and dual trigger options as well as reaming and drilling attachments. It also comes with a modular sterilization container and batteries.

E100 Multifunction Drill
Features & Technical Parameters

Technical Specifications

Speed Range (Key Chuck): 0-1200 rpm
Torque (Key Chuck): 3.5 N-m
Speed Range (Reaming): 0-400 rpm
Torque (Reaming): 10 N-m
  • All copper thick wall chuck, highly durable, high concentricity, and stable speed with spindle clamping for quick drill bit changes.
  • Tail power switch design ensures smooth operation and a clean aesthetic without affecting utilization.
  • Micro motor equipped with a full copper core wire movement, providing low noise, high power, and excellent stability.
  • Compact build and easy to store.
  • Frosted textured body surface designed to prevent slippage, offering a comfortable grip and minimizing hand fatigue during prolonged use.
Product Details
Product Details View
Details Angle View
Details Component View
Complete Set
Specification Sheet
Item Value
Multi-Function Handpiece Equipped with brushless DC cannulated motor imported from USA

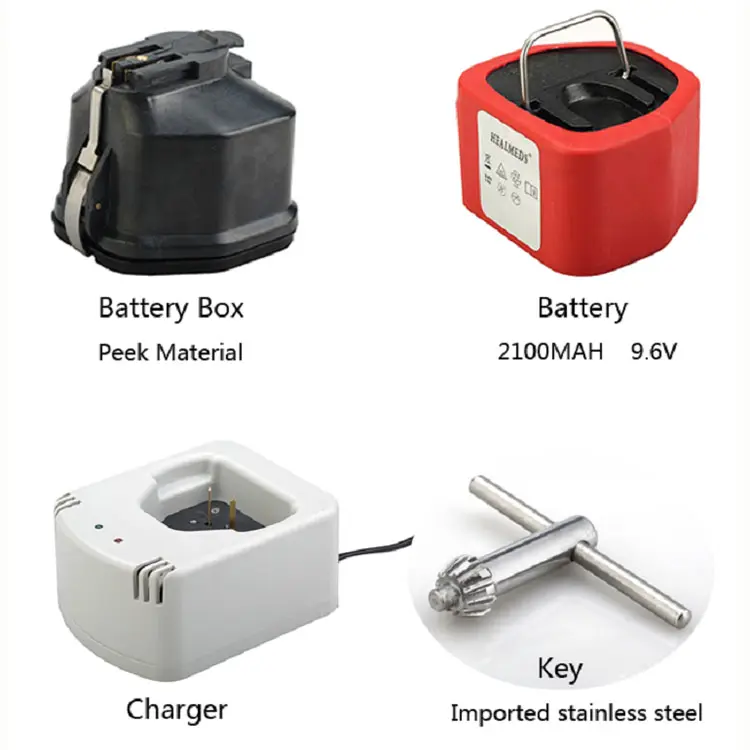

Battery Ni-MH with longer service-life, High capacity: 2100MAH, Voltage: 9.6V
Battery Box Peek material: sterilized more than 3000 times
Charger More convenient design to guarantee the battery life
Transfer Shield Imported stainless steel 304
Key Chuck Speed Range 0-1200rpm, Torque 3.5NM
Reaming Attachment Speed Range 0-400rpm, Torque 10NM
K-wire Attachment 0.7-1.6mm / 1.6-4.0mm
Reciprocating Saw Frequency: 0-12000cpm
Sterilizing Box 445*275*215mm, 4.6Kg
Payment & Delivery
Payment and Delivery Details
Our Advantages
Our Advantage Detail 1
Our Advantage Detail 2
Our Advantage Detail 3
Our Advantage Detail 4
Frequently Asked Questions
FAQ Details

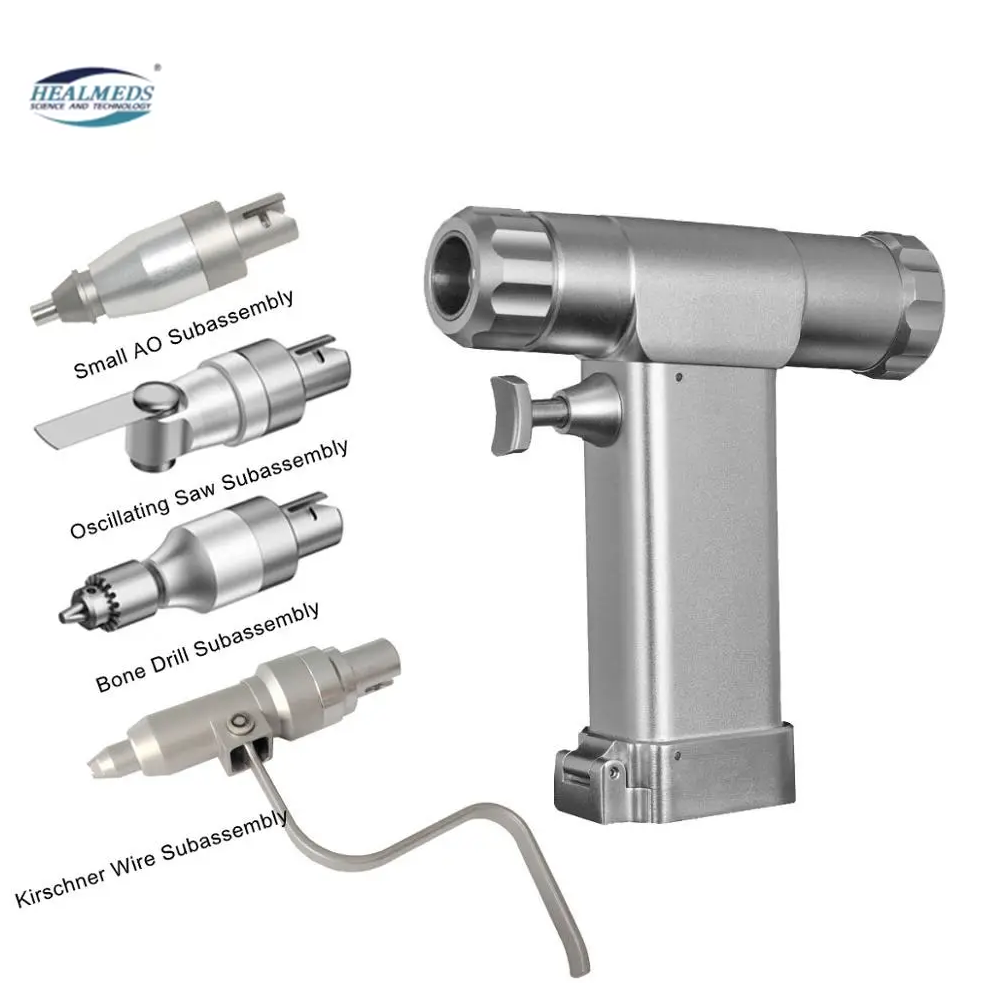

What components and attachments are included with the E100 system?
The E100 system includes the multi-function handpiece, key chuck attachment, reaming attachment, K-wire attachment, reciprocating saw, battery, peek material battery box, charger, transfer shield, and a modular sterilization box.
What are the motor and battery specifications?
The system features a brushless DC cannulated motor imported from the USA. It runs on a high-capacity Ni-MH battery (2100MAH) with a voltage of 9.6V, designed for longer service life and reliable power output.
Can the battery box be sterilized, and what material is it made of?
Yes, the battery box is made of highly durable Peek material and is designed to withstand sterilization and autoclaving processes more than 3000 times.
What are the speed and torque values for different attachments?
The Key Chuck attachment has a speed range of 0-1200rpm with a torque of 3.5NM. The Reaming attachment operates at a speed range of 0-400rpm with a torque of 10NM. The Reciprocating saw has a frequency range of 0-12000cpm.
How does the design enhance safety and user comfort?
The body utilizes a frosted textured surface process that effectively prevents slipping and ensures a comfortable, fatigue-free grip. It also implements advanced motor technology to reduce vibration, lower operational noise, and improve handle control.
What is the size and weight of the sterilization box?
The sterilization box measures 445 * 275 * 215 mm and has a total weight of 4.6 Kg, providing convenient layout storage for the modular components.
