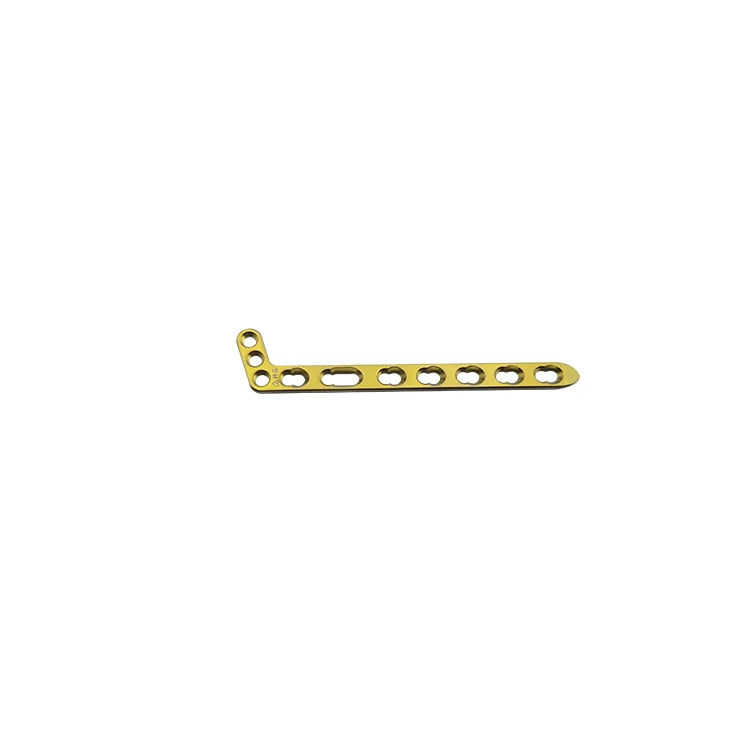

Distal Radius Oblique L-Shaped Locking Plate II Hospital Use Implants Interventional Materials for Bone Reconstruction Fracture
Distal Radius Oblique L-Shaped Locking Plate II Hospital Use Implants Interventional Materials for Bone Reconstruction Fracture
Distal Radius Oblique L-Shaped Locking Plate II Hospital Use Implants Interventional Materials for Bone Reconstruction Fracture
Distal Radius Oblique L-Shaped Locking Plate II Hospital Use Implants Interventional Materials for Bone Reconstruction Fracture
Distal Radius Oblique L-Shaped Locking Plate II Hospital Use Implants Interventional Materials for Bone Reconstruction Fracture
1 / 5
Distal Radius Oblique L-Shaped Locking Plate II Hospital Use Implants Interventional Materials for Bone Reconstruction Fracture
Distal Radius Oblique L-Shaped Locking Plate II Hospital Use Implants Interventional Materials for Bone Reconstruction Fracture
Distal Radius Oblique L-Shaped Locking Plate II Hospital Use Implants Interventional Materials for Bone Reconstruction Fracture
Distal Radius Oblique L-Shaped Locking Plate II Hospital Use Implants Interventional Materials for Bone Reconstruction Fracture
Distal Radius Oblique L-Shaped Locking Plate II Hospital Use Implants Interventional Materials for Bone Reconstruction Fracture

Distal Radius Oblique L-Shaped Locking Plate II Hospital Use Implants Interventional Materials for Bone Reconstruction Fracture

Send Inquiry

Product Description

Oblique L-shaped locking plate design
Distal radius oblique L-shaped locking plate specification
Product Specifications
Product Name Model Specification Material
The distal radius is oblique L-shaped locking plate II JPSD85 3--7 hole Titanium Alloy
⚙️ Fit: 2.4/2.7mm locking screw and 2.4/2.7mm cortical bone screw
Code Direction Specification Length
11060203 Left 3 43mm
11060303 Right 3 43mm
11060204 Left 4 52mm
11060304 Right 4 52mm
11060205 Left 5 61mm
11060305 Right 5 61mm
11060206 Left 6 70mm
11060306 Right 6 70mm
11060207 Left 7 79mm
11060307 Right 7 79mm

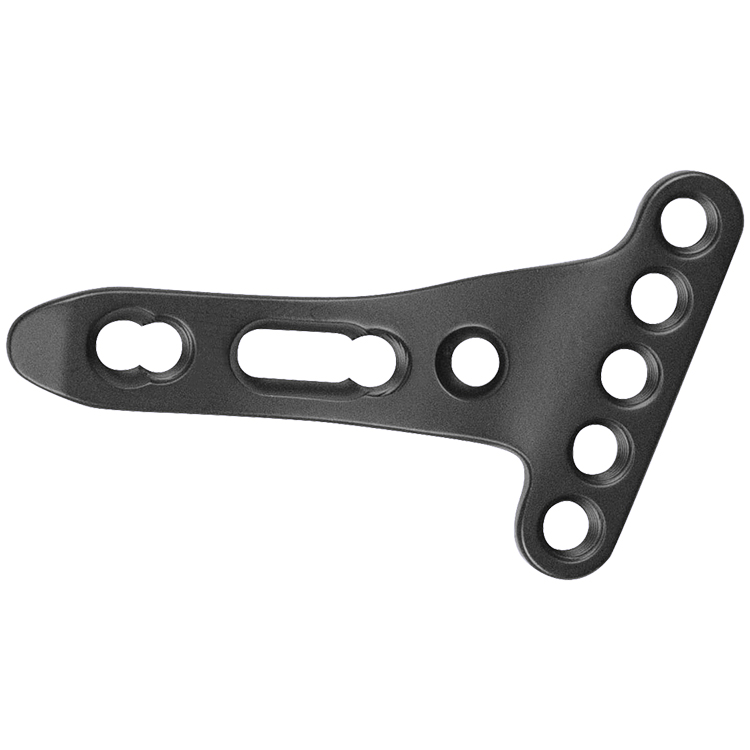

Titanium Alloy plate model structural details
Locking Plate Portfolio Specifications
Product Name Model Specification Material Code 5 - 20 Pcs 20+ Pcs
Reconstruction Locking Plate ZXSD02 6 hole Titanium Alloy 10010006 57.95 54.9
Narrow Dynamic Locking Plate II ZXSD05 6--14 hole Titanium Alloy 10040406 54.15 51.3
Humeral compression locking plate JPSD13 4--16 hole Titanium Alloy 10350203 57.95 54.9
Clavicular Hook Locking Plate JPSD09 4--8 hole Titanium Alloy 10300204 56.05 53.1
Clavicular Hook Locking Plate II JPSD90 4--10 hole Titanium Alloy 10300204 57 54
Reconstruction Clavicular Locking Plate IV JPSD94 7-9 hole Titanium Alloy 11150207 76 72
Proximal humeral locking plate JPSD33 3--14 hole Titanium Alloy 10540203 58.9 55.8
Obique T- Locking Plate JPSD07 3 hole Titanium Alloy 10280203 58.9 55.8
Distal lateral humeral locking plate JPSD13 3--11 hole Titanium Alloy 10280203 68.5 64.8
Proximal ulnar locking plate JPSD15 3--12 hole Titanium Alloy 10360203 71.25 67.5
Distal radial locking plate II JPSD78 3--8 hole Titanium Alloy 10990203 40.85 38.7
Core Product Lines & Features
First metatarsophalangeal joint fusion plate
2.4/ 2.7mm First metatarsophalangeal joint fusion variable locking plate (titanium alloy material)
3 different dorsiflexion angles, 0/ 5/ 10 respectively, are suitable for different joints. Reliable Kirschner wire compression holes and slots in the middle of the plate. Etching lines on the plate indicate the correct fusion position.
Medial-lateral distal humeral locking plate
Medial-lateral distal humeral locking plate
Plates are anatomically precontoured. Designed with a countersinkable head design of 2.7mm screw to reduce tissue irritation. 5 types of medial-lateral distal humeral locking plates allow doctors to determine fracture fixation schemes according to the condition.
Phalanx variable locking plate
1.3/ 1.5mm Phalanx variable locking plate (titanium alloy material)
Extension holes in the middle of the plate to adjust the position of the plate. Plate can be placed on the ulnar and radial sides of the phalanx. Plates are anatomically precontoured of phalanx and have left and right types.
Distal radius locking plate
Distal radius locking plate
The volar / dorsal distal radius combination provides a rich imagination space for doctors. Precontoured design adheres to the bone surface to reduce tissue irritation. Round thin blunt edge design for minimally invasive insertion through the muscle.
Calcaneus variable locking plate
2.7mm Calcaneus variable locking plate (titanium alloy material)
Anatomically precontoured plates adhere to the calcaneal protrusion, posterior articular talus and calcaneal tubercle. The countersinkable head design of the screw reduces the possibility of the screw head protruding from the plate surface.
Orthopedic Medical Devices
Spinal fusion and interbody cages
Intramedullary interlocking nails
Company Profile
Manufacturing workshop profile 1
Manufacturing workshop profile 2
Manufacturing workshop profile 3
Frequently Asked Questions
Would you please give some information on shipping mode and charges?
Normally we send through courier like DHL, FEDEX, UPS, TNT etc. or post upon request from clients.
Do you have ISO9001, ISO 13485, CE approvals?
Yes, our products are manufactured in strict compliance with ISO9001 and ISO 13485 quality standards, and we hold CE approvals to guarantee the highest quality for orthopedic application.
What is the minimum order that we can place? Do you provide free samples?
We expect your minimum orders to be at least US$500. However, we understand that customers need to place smaller sample orders in the beginning to test our products in the market. We can offer free samples but do not cover the cost of freight.
Can I buy products not shown but similar to your catalogue?
Of course you can, just send us pictures or samples. Please note this may take a little longer for production and delivery.
Do you have stock for listed products, or they are newly produced? What are your terms of payment?
Generally, we maintain stock for listed products, which are replenished monthly. However, it depends on ongoing sales. We recommend asking our sales representative for real-time inventory updates. Payment <= 800 USD requires 100% in advance. Payment > 800 USD requires 30% T/T in advance, with the balance paid before shipment. Accepted payment methods include L/C, T/T, Western Union, PayPal, etc.
What materials are your orthopedic implants made of?
Our implants, including locking plates and screws, are made of high-quality Titanium Alloy which ensures superior biocompatibility, strength, and durability.
