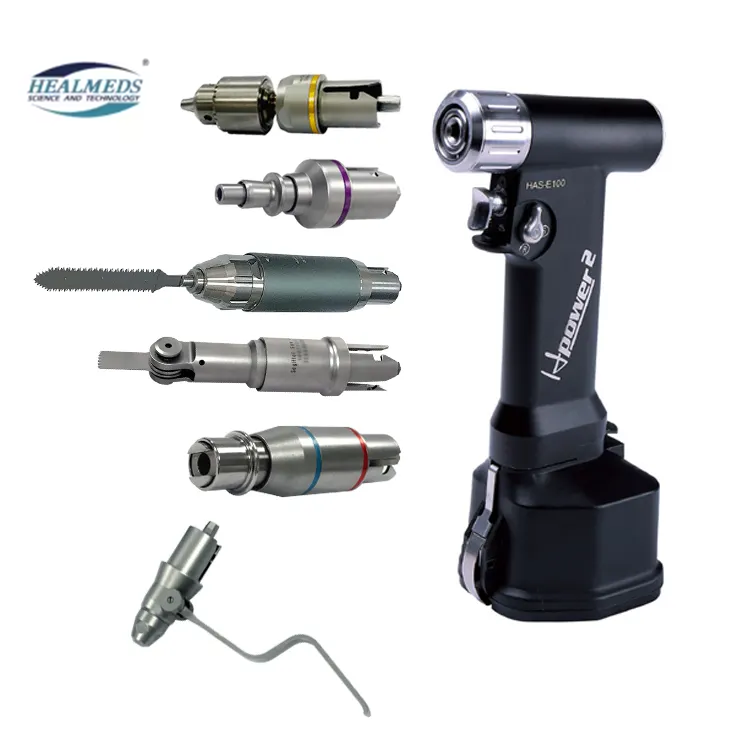

E100 Multifunction Drill
Mini multi function bone drill machine
Speed Range (Key Chuck):
0-1200rpm
Torque (Key Chuck):
3.5N-m
Speed Range (Reaming):
0-400rpm
Torque (Reaming):
10N-m

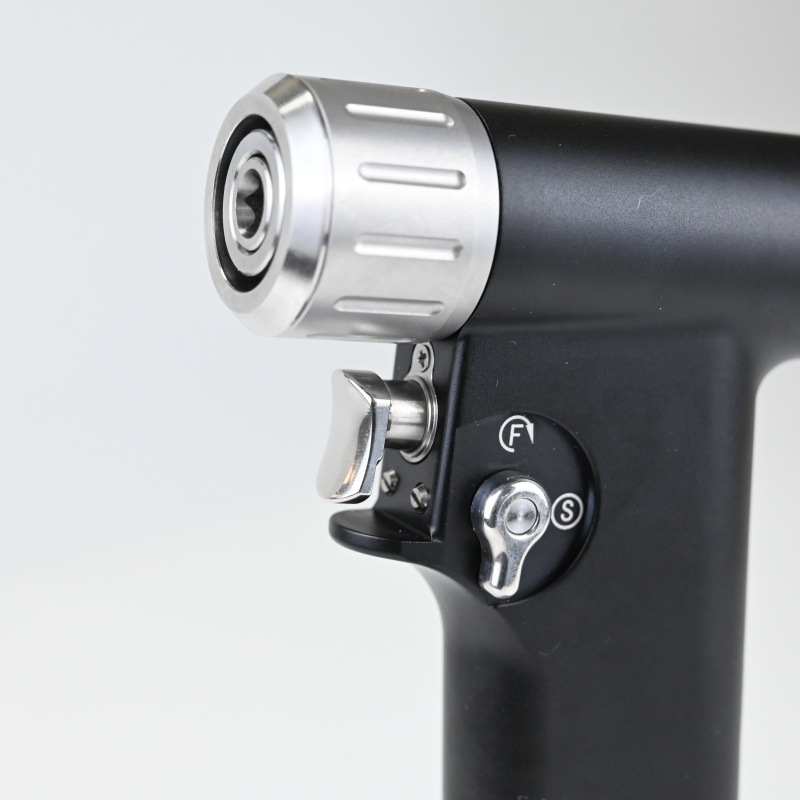

- All copper thick wall chuck, very durable, high concentricity, stable speed, spindle clamping, easy and quick to change drill bits.
- Tail power switch design, smooth operation, beautiful and does not affect the use.
- Micro motor, full copper core wire movement, low noise, high power, high stability.
- Easy to store.
- Frosted texture process on the surface of the body, effectively prevent slippage, comfortable to hold, not tired of long time use.
| Item |
Value |
| Multi-Function Handpiece |
Equipped with brushless DC canulated motor imported from USA |

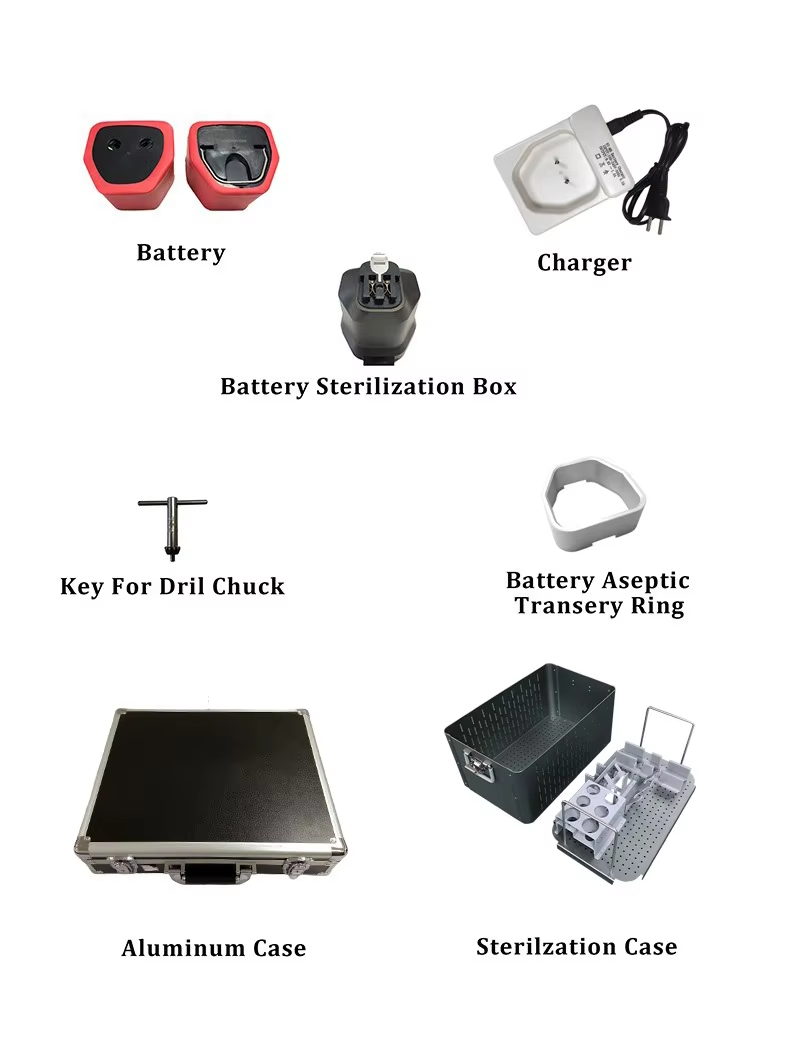

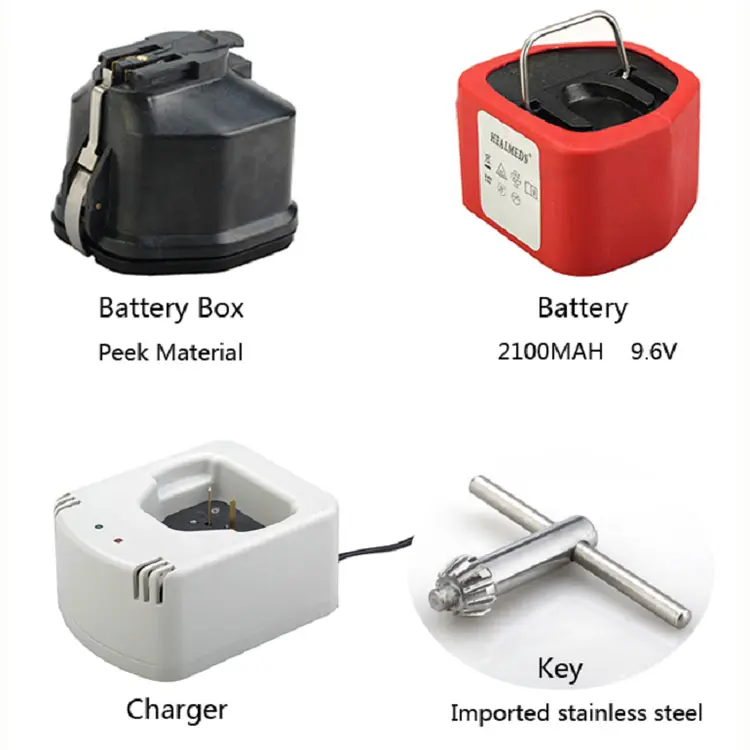

| Battery |
Ni-MH with Longer service-life, High capacity: 2100MAH Voltage: 9.6V |

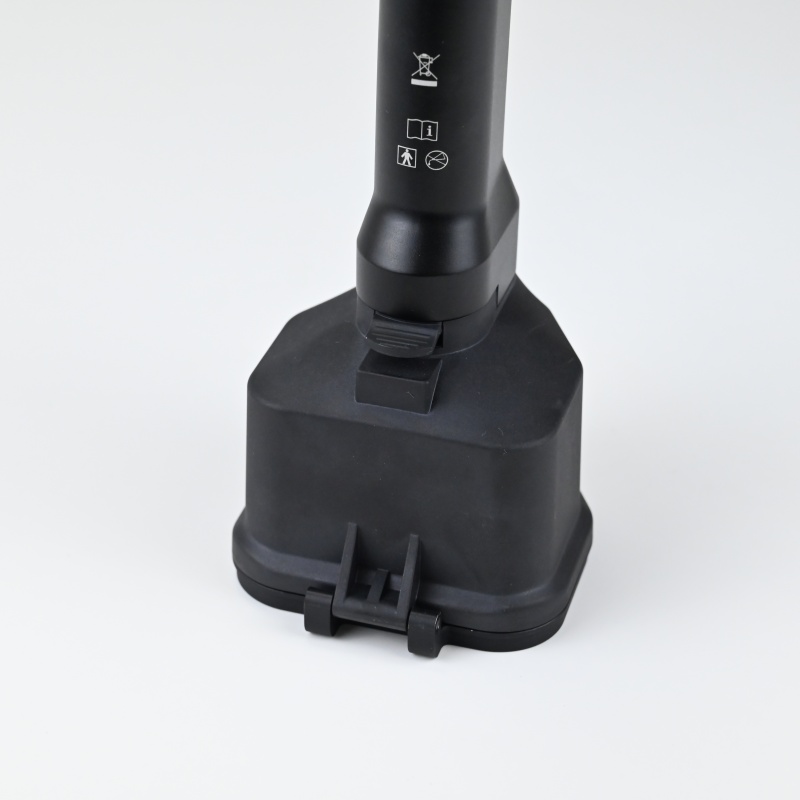

| Battery Box |
Peek material: sterilized more than 3000 times |
| Charger |
More convenient design to guarantee the battery life |
| Transfer Shield |
Imported stainless steel 304 |

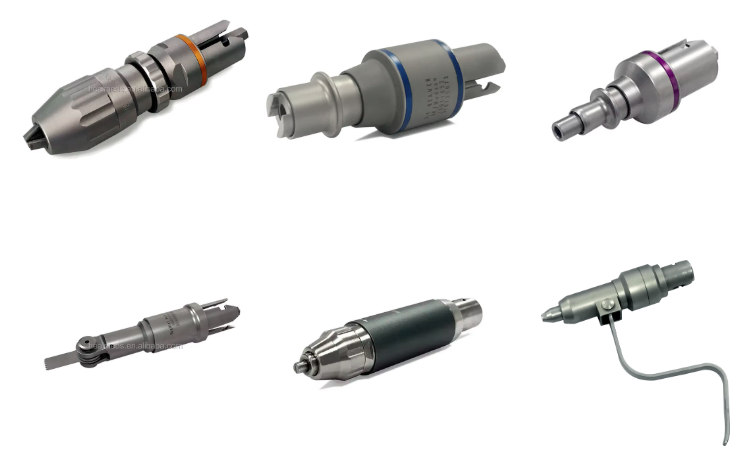

| Key Chuck |
Speed Range 0-1200rpm, Torque 3.5NM |
| Reaming Attachment |
Speed Range 0-400rpm, Torque 10NM |
| K-wire Attachment |
0.7-1.6mm / 1.6-4.0mm |

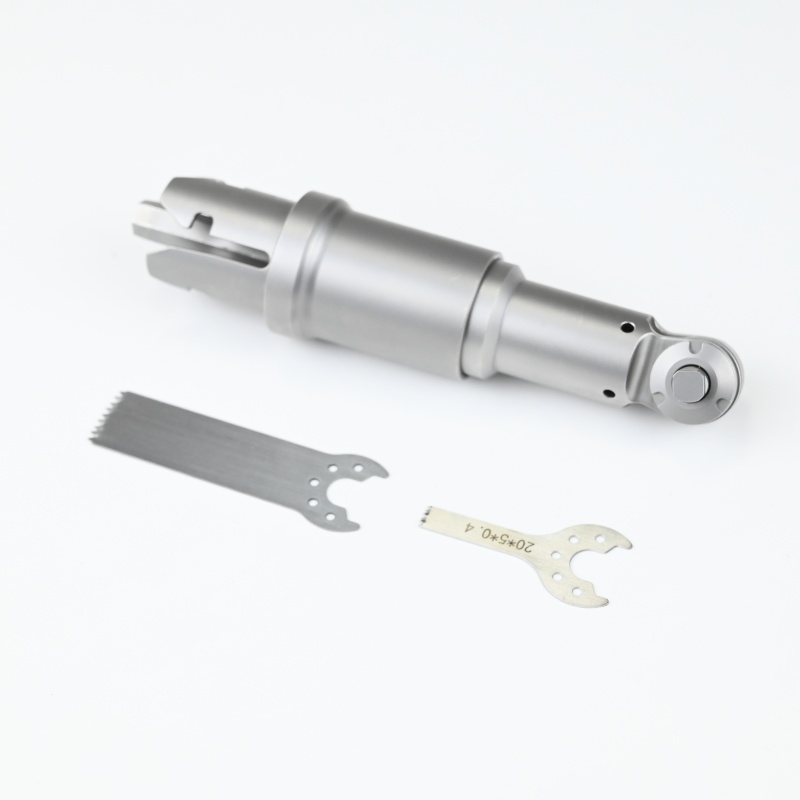

| Reciprocating Saw |
Frequency: 0-12000cpm |
| Sterilizing Box |
445*275*215mm, 4.6Kg |

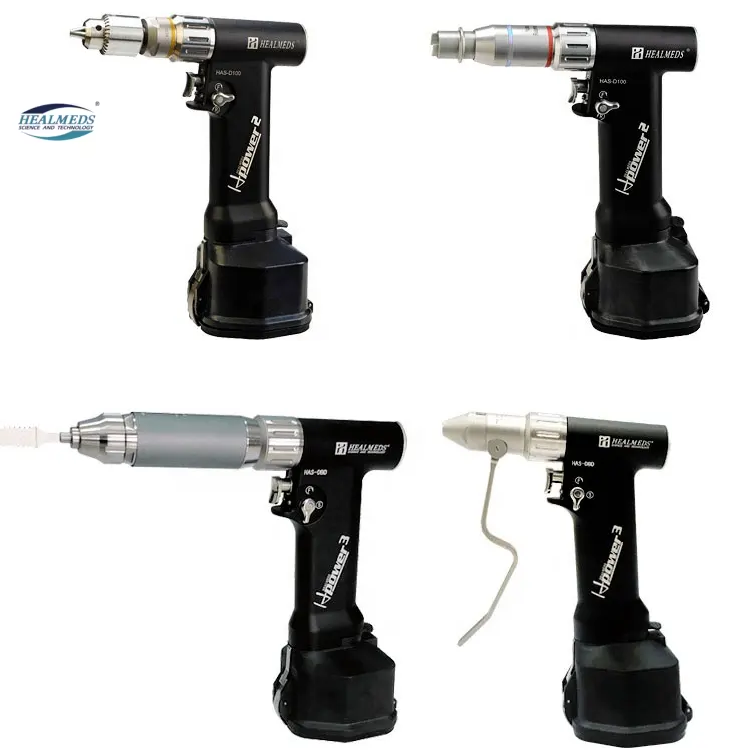

What are the main functions of the E100 Multifunction Drill?
The E100 is a versatile bone drill machine that supports key chuck attachments, reaming attachments, K-wire attachments, and a reciprocating saw, making it highly adaptable for various orthopedic and surgical applications.
How durable is the battery box and can it be sterilized?
The battery box is made of high-grade PEEK material, designed to endure autoclave and sterilization procedures more than 3000 times without compromising performance.
What type of motor is used in the handpiece?
The handpiece is equipped with a high-efficiency, brushless DC cannulated motor imported from the USA, ensuring low noise, high stability, and an extended operating lifespan.
What is the torque capability for reaming and drilling?
The Key Chuck attachment provides a speed range of 0-1200rpm with a torque of 3.5N-m. The Reaming attachment delivers a speed of 0-400rpm with a maximum torque of 10N-m.
What materials are used for the key components?
The handpiece uses a durable all-copper thick-wall chuck for concentricity, while the transfer shield is made from premium imported 304 stainless steel.
What battery type is supplied, and what is its capacity?
The system uses a high-capacity Ni-MH battery (2100mAh, 9.6V) engineered for a longer service life and stable power delivery during medical operations.
